The Two-Hole Anchor is used as an economical way to achieve high tension loads in thin panels or low compressive strength concrete.It is a low-profile insert optimized for stripping and handling of panels where spread-type anchors cannot be used. When used with a tension bar, the anchor can achieve high tension loads in low compressive strength, thin precast panels.
The Two-Hole Anchor is used as an economical way to achieve high tension loads in thin panels or low compressive strength concrete.
Description and Components:
1.Design
1) Two Hole Anchors are suitable for use where load distribution is not possible through the foot of a spread anchor and is done so by use of a reinforcement tail bar. They are particularly useful in thin wall panels and trusses, or where concrete strength is low.
2)Two Hole Anchors are manufactured from high grade steel.Two Hole Anchors are available in black, zinc plated, galvanised steel or stainless steel.
2.Components:

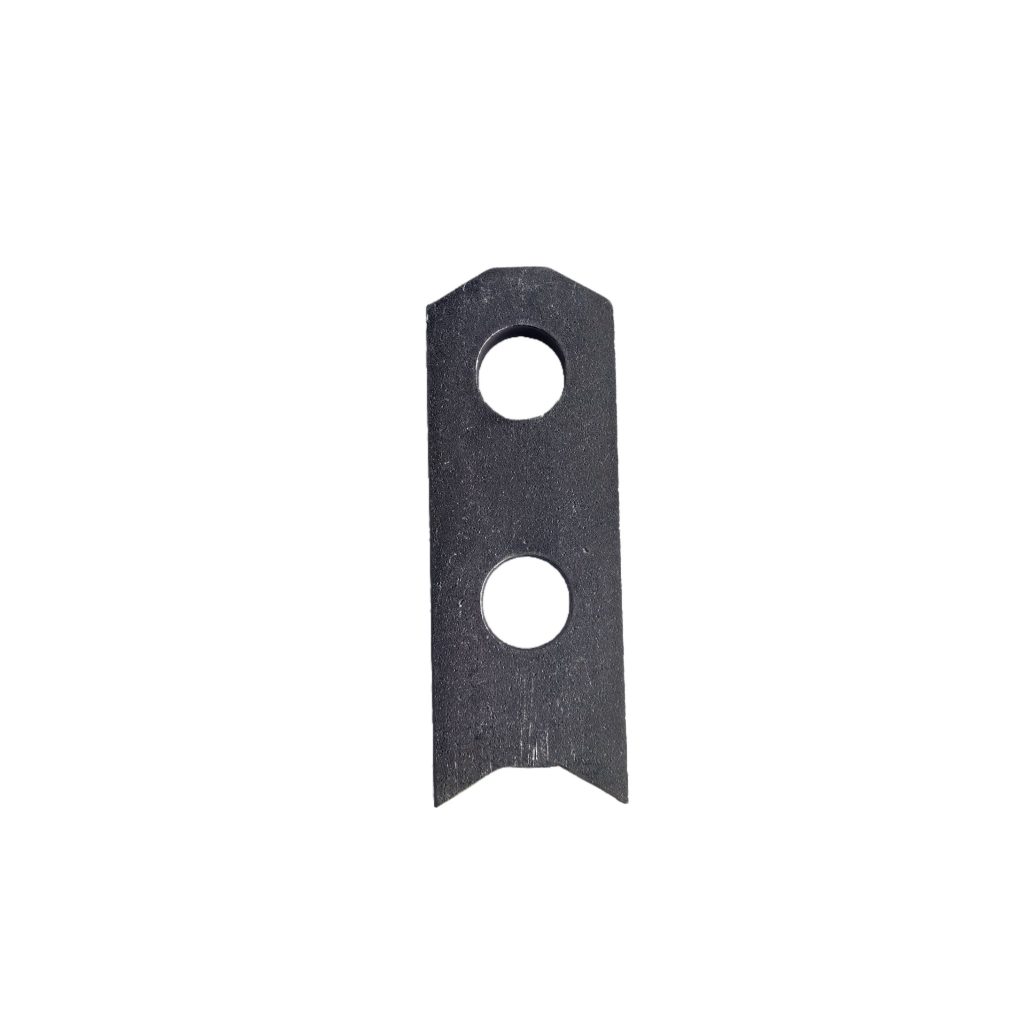

The head of the Two-Hole Anchor is similar to the head of the spread anchor. The second hole in the lower part of the anchor allows an additional reinforcement bar to be used. Anchorage in the concrete is achieved with this additional reinforcement bar. Longer anchors with more additional holes can be made on request.
Advantage
The Two-Hole Anchor is a low-profile insert optimized for stripping and handling of panels where spread-type anchors cannot be used. When used with a tension bar, the anchor can achieve high tension loads in low compressive strength, thin precast panels.
