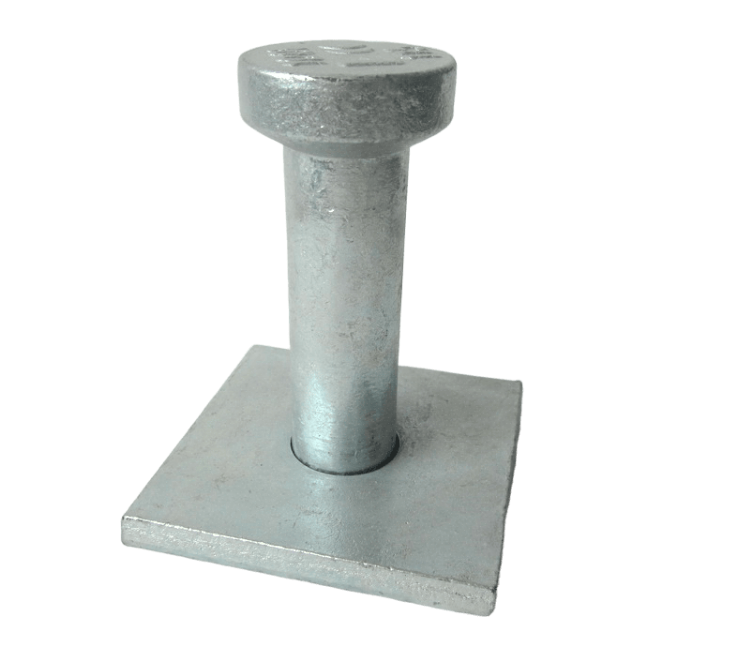

Spherical Head Plate Anchor

Baoqi Spherical Head Plate Anchors are standard lifting anchors designed with a welded base plate for secure attachment to concrete structures. These anchors are engineered to withstand significant axial loads, with a safety factor of 3 to prevent breakage, ensuring reliable performance even under heavy lifting conditions. Available in two finishes, black and hot-dip galvanized, these anchors offer flexibility depending on environmental requirements, with the galvanized option providing enhanced corrosion resistance for outdoor or exposed installations.

The spherical head design allows for easy and efficient connection to lifting equipment, providing a secure lifting point during the handling and transportation of concrete elements. The welded base plate ensures a strong bond between the anchor and the concrete, contributing to overall safety and stability during lifting operations.

Baoqi Spherical Head Plate Anchors are widely used in the construction and precast concrete industries, where reliable, durable lifting solutions are essential. Their versatility, coupled with the high safety factor, makes them suitable for various lifting and handling applications in both indoor and outdoor environments.

Chat Now

Product Details

Design and Components:

The Baoqi Spherical Head Plate Anchor is designed to be embedded into the concrete during the manufacturing process, providing a permanent, strong lifting point. The key components of the anchor include:

Anchor Body: The central portion of the anchor, typically made of high-strength materials such as stainless steel or galvanized steel, is embedded within the concrete for a secure attachment.
Lifting Eye or Attachment Point: This reinforced point protrudes from the surface of the concrete, providing a connection for lifting slings, chains, or other lifting equipment.
Embedment Legs: These legs are integrated within the concrete, ensuring that the anchor remains firmly secured throughout the lifting process.

Functionality:

Installation: During the production of precast concrete elements, the Baoqi Spherical Head Plate Anchor is positioned and embedded into the concrete. The anchor’s embedment legs ensure that it stays securely fixed within the concrete, providing a stable and reliable lifting point.

Lifting and Handling: Once the concrete has cured and is ready for installation, lifting slings or chains are connected to the lifting eye. This enables controlled and safe lifting of the concrete elements, reducing the risk of accidents or damage during transportation and placement.

Applications:

Precast Concrete Industry: Baoqi Spherical Head Plate Anchors are widely used in the precast concrete industry, particularly for lifting and installing various components such as panels, beams, columns, and slabs. The anchor ensures the safe and efficient transportation and placement of these heavy precast elements.
Construction and Infrastructure Projects: These anchors are also deployed in construction sites and infrastructure projects, including building construction, bridges, tunnels, and other civil engineering works, where precision and safety are critical for lifting and positioning large concrete elements.

Advantages:

Safety: The anchor’s design provides a secure lifting point, minimizing the risk of slippage or detachment during lifting operations. This enhances the safety of workers and the stability of the load.
Efficiency: The Baoqi Spherical Head Plate Anchor streamlines the lifting process, allowing for faster, more controlled installation of precast concrete elements. This reduces labor costs and accelerates project timelines compared to traditional methods.
Versatility: These anchors are suitable for a variety of concrete shapes and sizes, making them adaptable for different construction and industrial applications.
