Shuttering systems or magnetic formwork are used for the production of precast concrete structures. The adapters with the shuttering magnets are placed on the points of the magnetic formwork fixation. When concrete is set, a formwork is demoulded by removing equipment. Some shuttering magnet systems are equipped with adaptors for magnetic formwork fixation. A formwork differs by its stiffness – a flexible shuttering board is used for round parts, and a rigid shuttering board is used for standard structures.

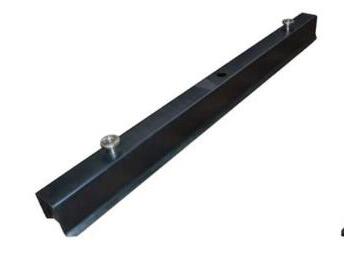

This is a shuttering system for systematic production of cladding, sandwich walls, solid walls and slabs.
Magnetic components with an adhesive force from 450 kg up to 2100 kg are used according to the requirement.

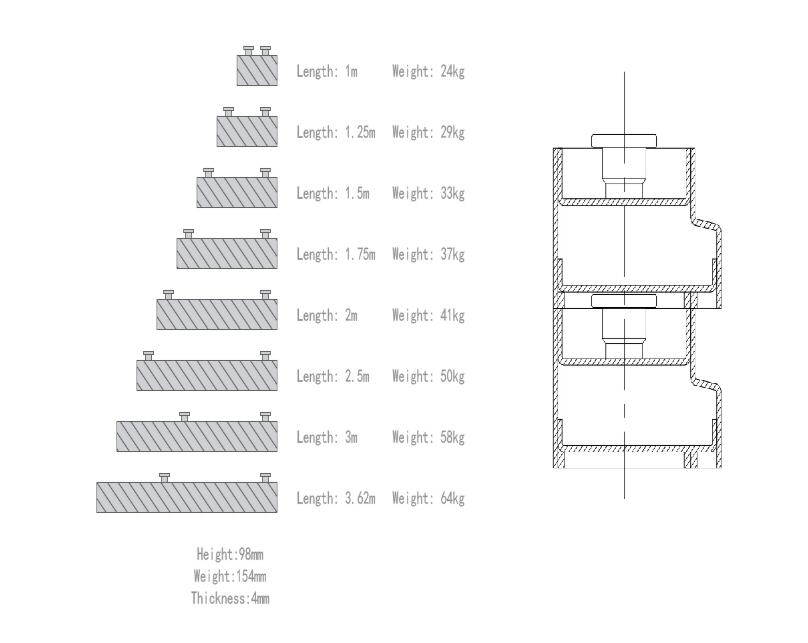

This is available in length up to 3980 mm and heights from 60 mm up to 400 mm.
The system can be used for manual and robot handling.
Functions:
Magnetic formwork systems help workers in the reinforced concrete industry do their jobs better, more comfortable, and safer. The prefabricated construction industry is on the steady incline. Magnetic products like shuttering systems and ferrule insert magnets are used to mount inserts to a steel form with magnets, instead of drilling holes. These unique systems have changed the production of precast concrete components. The magnets can be directly embedded in the formwork, making them more convenient, more efficient, and more stable.
Using the intense adhesive force from the magnetic block, the formwork remains in close contact with the template, allowing whichever formwork system that needs to be fixed, to stay put. Because the steel formwork and magnetic blocks are united, no movement will occur. Even the slightest movement can cause the formwork system to deform.

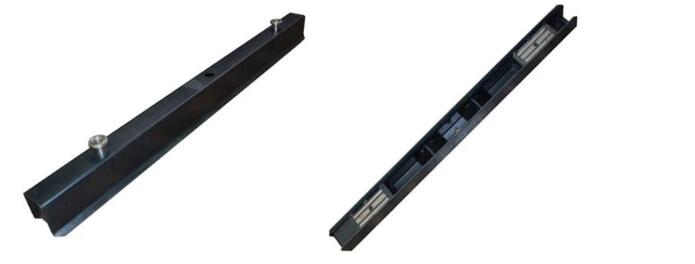

Magnetic Formwork System are simple. They don’t require much of a learning curve, and they’ve helped to make the prefabricated construction industry environment safer and more stable. With the matching pry bar, the formwork magnet can be picked up, and the steel formwork can be easily removed from the template. Since the magnets are located inside the steel formwork groove, concrete residue or other dirt will not cause damage to the formwork system.
Formwork Magnet Material and Treatment process:
–Q235A Carbon Steel, Blackening Treatment
Generally，Q235A carbon steel is better than stainless steel，cause its magnetic flux and low cost. The antirust treatment of the iron sheet is usually process by blackening. Blackening is a common method of chemical surface treatment. The principle is to create an oxide film on the metal surface to isolate the air and achieve the purpose of rust prevention.
1. high-performance magnets, strong force secure the shuttering against sliding.
2. easy positioning, fixing and removal of the shuttering, either in manual, crane or robotic handling.
3. provide a cost effective, efficient solutions for the production of high quality precast concrete elements.
4. special tailor-made shape, height & length, on the basis of your individual requirements.
We also can produce shuttering as per your design.
We provide customized services, special tailor-made shape, height & length are on the basis of your individual requirements.

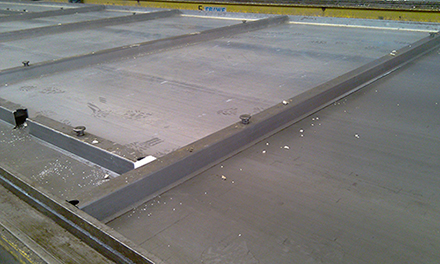

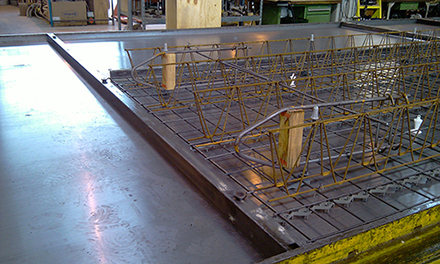

Application :
