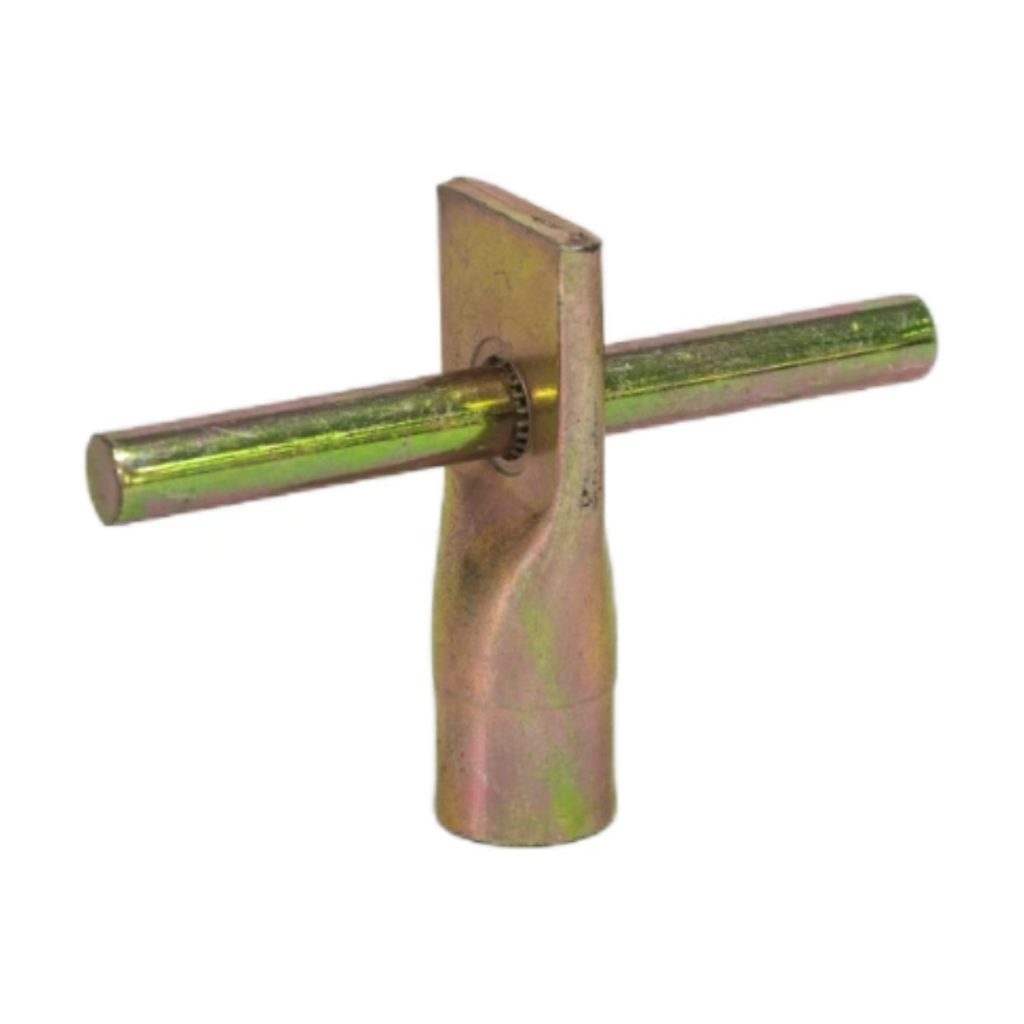

Fixing socket with cross bar for Precast Concrete

A precast concrete fixing socket with a cross bar is a fastening and connecting device specially used in precast concrete members. It is usually made of metal and has a socket section with a cross rod that can be firmly embedded in the concrete and provide a reliable connection point.Precast concrete fixed sockets with cross rods are widely used in construction, Bridges, tunnels and other engineering fields, especially in precast concrete components requiring high precision and reliable connections.A precast concrete fixing socket with a cross bar is composed of a flat pipe and a cross bar inserted into it. Shrink flat pipe is a special shape of the pipe, the cross section is flat, and one or both ends have a shrink design. A transverse rod is a thin, rod-like component inserted into a narrow flat tube to increase the strength of the connection or provide additional support.

Main feature

• High strength: Made of high quality metal, it can withstand high tension and pressure, ensuring stability and durability in concrete.
• Easy installation: Designed with cross bars, it is easy to position and secure the concrete before pouring, but also helps to keep the position stable during pouring.
• Versatility: It can be used for the connection and fixing of various precast concrete components, such as beams, plates, columns, etc.
• Customization: It can be customized according to the specific needs and designs of customers to meet the requirements of different projects.

Matters needing attention

• When selecting prefabricated concrete fixed sockets with cross rods, the selection should be based on the needs and design of the specific project.
• When installing, ensure that the socket position is accurate to avoid displacement during concrete pouring.
• The fixing of the socket should be checked regularly during use to ensure its stability and durability.

Product characteristics

• Center hole design: Each connector has a center hole, which is not only easy to insert other components for connection, but also ensures that the connector remains stable and strong during installation.
• Quality materials: These connectors are made of high-strength metal materials with excellent corrosion resistance and durability, and can be used in harsh environments for long periods of time without damage.
• Fine workmanship: The manufacturing process of the connectors is subject to strict quality control to ensure that each part meets high precision standards, thus providing a reliable connection solution for your project.

Application scenario

• Building structure: The flat pipe insert bar can be used for the connection and support of building structures, such as Bridges, building frames, etc.
• Mechanical equipment: In mechanical equipment, the flat pipe insert horizontal rod can be used to connect and support various components to ensure the stability and safety of the equipment.
• Automobile manufacturing: In the automobile manufacturing, the flat pipe insert horizontal rod can be used for the connection and reinforcement of the automobile frame to improve the impact resistance of the automobile.


  ITEM 200		Dimensions(mm)				SWL(KG)
  		=	*	f	L
  JFSCB08040	Mic—–	6.3	<		40	200
  JFSCB08050	M8×50	8.3	8	15	50	250
  JFSCB10045	M10×45	10.2	9	20	45	350
  JFSCB10050	M10×50	10.2	9	20	50	350
  JFSCB12060	M12×60	12.2	11	23	60	500
  JFSCB16070	M16×70	12.2	15	20	70	700
  JFSCB16080	M16×80	12.2	15	30	80	700
  JFSCB16100	M16×100	12.2	15	40	100	800
  JFSCB20100	M20×100	13.2	17	40	100	1200
  JFSCB24120	M24×120	14.2	20	40	120	1900
  JFSCB30150	M30×150	17.2	28	65	150	3900
