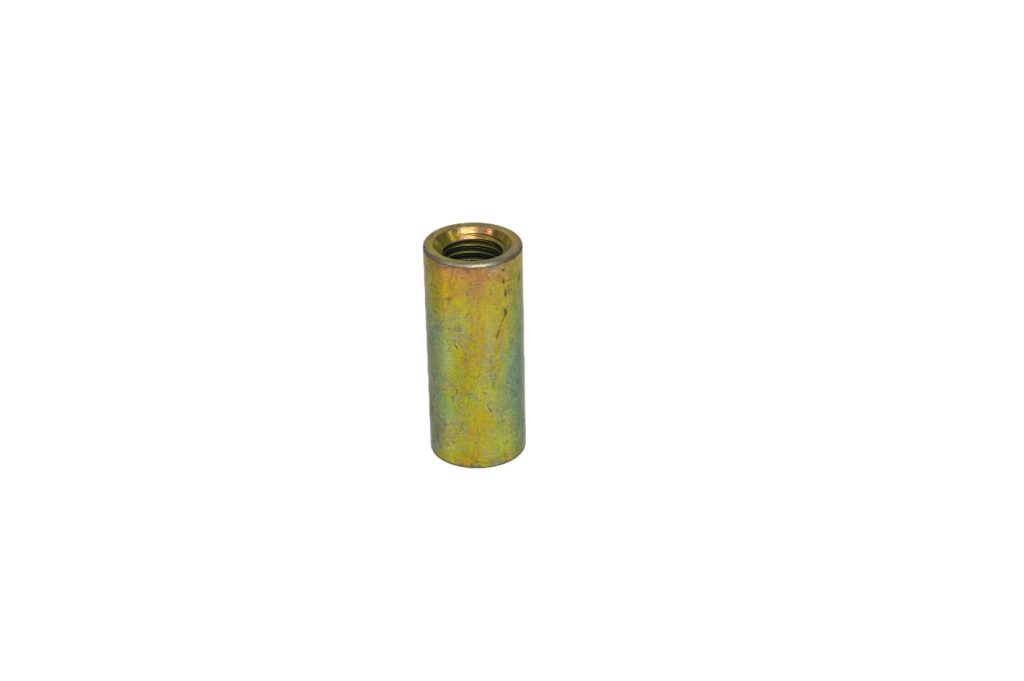

Connector Coupler

Feature:

1. Diversity:

• Various structural forms of pre-embedded connector couplers can be selected according to specific connection requirements and environmental conditions. Common structural forms include bolted connections, welded connections, and riveted connections.

2. High precision:

• As pre-embedded parts usually need to be placed in advance during the pouring of the structure, the pre-embedded connector coupler needs to be highly precise to ensure the accuracy and reliability of the connection.

3. High strength:

• The pre embedded connector coupler needs to withstand the weight from the structure itself and external loads, so it needs to have sufficiently high strength to ensure the firmness of the connection.

Application:

Pre-embedded connector couplers are widely used in various building structures, including but not limited to:

1. Prefabricated modular buildings:

• In prefabricated modular buildings, pre embedded connector couplers are used to connect prefabricated walls, floors, beams, and other components to ensure the stability and safety of the entire structure.

2. Bridge and tunnel engineering:

• In bridge and tunnel engineering, pre embedded connector couplers are used to connect components such as bridge piers and decks, as well as lining structures of tunnels. These connecting devices need to withstand dual tests from traffic loads and natural environments.

3. Underground engineering and civil defense engineering:

• In underground engineering and civil defense engineering, the pre embedded connector coupler needs to meet special requirements such as waterproofing and moisture resistance to ensure the durability and safety of the structure.

Selection and Installation:

When selecting a pre embedded connector coupler, the following factors need to be considered:

1. Connection requirements:

• Select appropriate connection devices based on specific connection requirements and environmental conditions. For example, in scenarios where large loads need to be borne, connection devices with high strength and good durability should be selected.

2. Material selection:

• The material of the pre embedded connector coupler should have good corrosion resistance and wear resistance to ensure long-term stability and reliability of the connection. Common materials include stainless steel, alloy steel, etc.

3. Installation accuracy:

• The installation accuracy of the pre embedded connector coupler is crucial for the stability and safety of the structure. Therefore, it is necessary to strictly control installation errors during the installation process to ensure the accuracy and reliability of the connection.

When installing the pre-embedded connector coupler, the following steps need to be followed:

1. Preparation work:

• Clean the oil stains and impurities on the surface of the embedded parts to ensure the cleanliness and dryness of the connection parts.

2. Positioning and fixing:

• According to the design drawings and installation requirements, accurately position the pre embedded connector coupler on the pre embedded part and fix it with the appropriate tools.

3. Connection and inspection:

• Use bolts, welding, or other connection methods to connect the pre embedded connector coupler to the pre embedded parts or other components. After the connection is completed, a comprehensive inspection is required to ensure the firmness and reliability of the connection.
