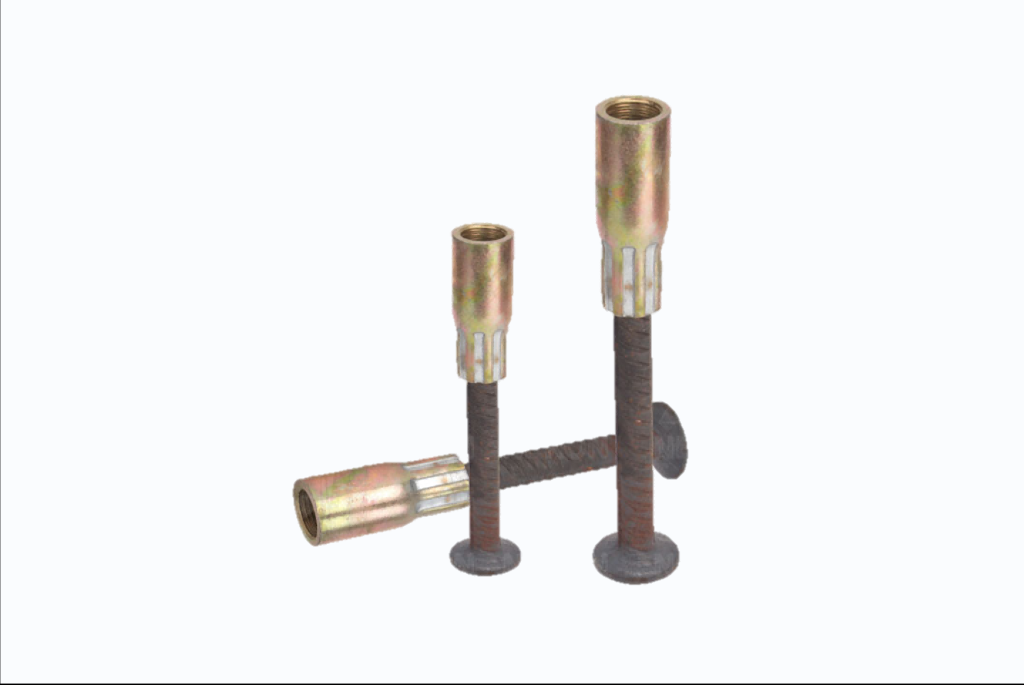

Combi lifting socket

Combi lifting socket is an accessory specially designed for hoisting precast concrete components. It combines the functions of lifting and fixing, providing convenience and safety for the lifting operation of precast concrete components.Combi lifting Sockets play an important role in the lifting of precast concrete components with their unique modular design, high strength materials, standardized dimensions and wide range of applications. By understanding its structural characteristics, functional characteristics, application fields and use precautions and other aspects of knowledge, you can better choose and use this lifting accessories to ensure the safety and efficiency of construction.

Structural characteristics

• Combi lifting Sockets are usually composed of multiple components that can be selected and combined according to specific requirements to meet the requirements of different lifting jobs.
• High-strength materials: To ensure safety and stability during lifting, Combi lifting Sockets are usually made of high-strength steel or other suitable materials that can withstand large loads.
• Standardized size: For ease of use and interchangeability, Combi lifting Sockets usually follow a standardized size design, which allows it to be reused in different lifting jobs.

Functional characteristics

• lifting function: The Combi lifting socket functions as a lifting point to lift precast concrete members by connecting the lifting equipment, such as slings and hooks.
• Fixed function: In addition to the lifting function, the Combi lifting socket can also be used as a fixed point to hold precast concrete members in a specific position to ensure stability and safety during construction.
• Adjustment function: Some Combi lifting sockets also have the adjustment function to adjust the position and height of a lifting point as required to meet different construction environments and requirements.

Application fields

• Construction field: Used for hoisting prefabricated wall panels, floors, beams and other components to speed up construction progress and improve construction efficiency.
• Bridge engineering: In bridge construction, it is used to lift prefabricated piers, bridge decks and other components to ensure the stability and safety of the bridge structure.
• Hydraulic engineering: In the construction of hydraulic engineering, it is used to lift prefabricated sluices, pumping stations and other components to meet the construction requirements of water conservancy facilities.

Precautions for use

• Select a proper model and specifications: When selecting the Combi lifting socket, select a proper model and specifications based on the load requirements and component sizes of specific application scenarios.
• Ensure the installation quality: When installing the Combi lifting socket, ensure that the connection between the combI lifting socket and the precast concrete member is secure and reliable to prevent the combi lifting socket from falling off or loosening during lifting.
• Periodic check and maintenance: Periodically check and maintain the Combi lifting socket to detect and handle potential problems, such as wear and corrosion, in a timely manner to ensure long-term stable operation


  ITEM NO.	Size	Dimensions(mm)				SWL(KG)
  		D	e	d	L
  JCLS12100	RD12	16	22	8	100	500
  JCLS12150	RD12	16	27	8	150	500
  JCLS16130	RD16	21.5	27	10	130	1200
  JCLS16175	RD16	21.5	27	10	175	1200
  JCLS20183	2022	27.5	34	14	183	2000
  JCLS2025	2020	27.5	34	14	250	2000
  JCL82622	R024	31.5	40	16	200	2500
  JCLS24275	RD24	31.5	40	16	275	2500
  JCLS30275	RD30	39	56	20	275	4000
  JCLS30350	RD30	39	56	20	350	4000
  JCLS36334	RD36	47	68	25	334	6300
  JCLS36450	RD36	47	68	25	450	6300
  JCLS42385	RD42	54	80	28	385	8000
  JCLS42500	RD42	54	80	28	500	8000
  JCLS52500	RD52	67.5	100	34	550	12500
