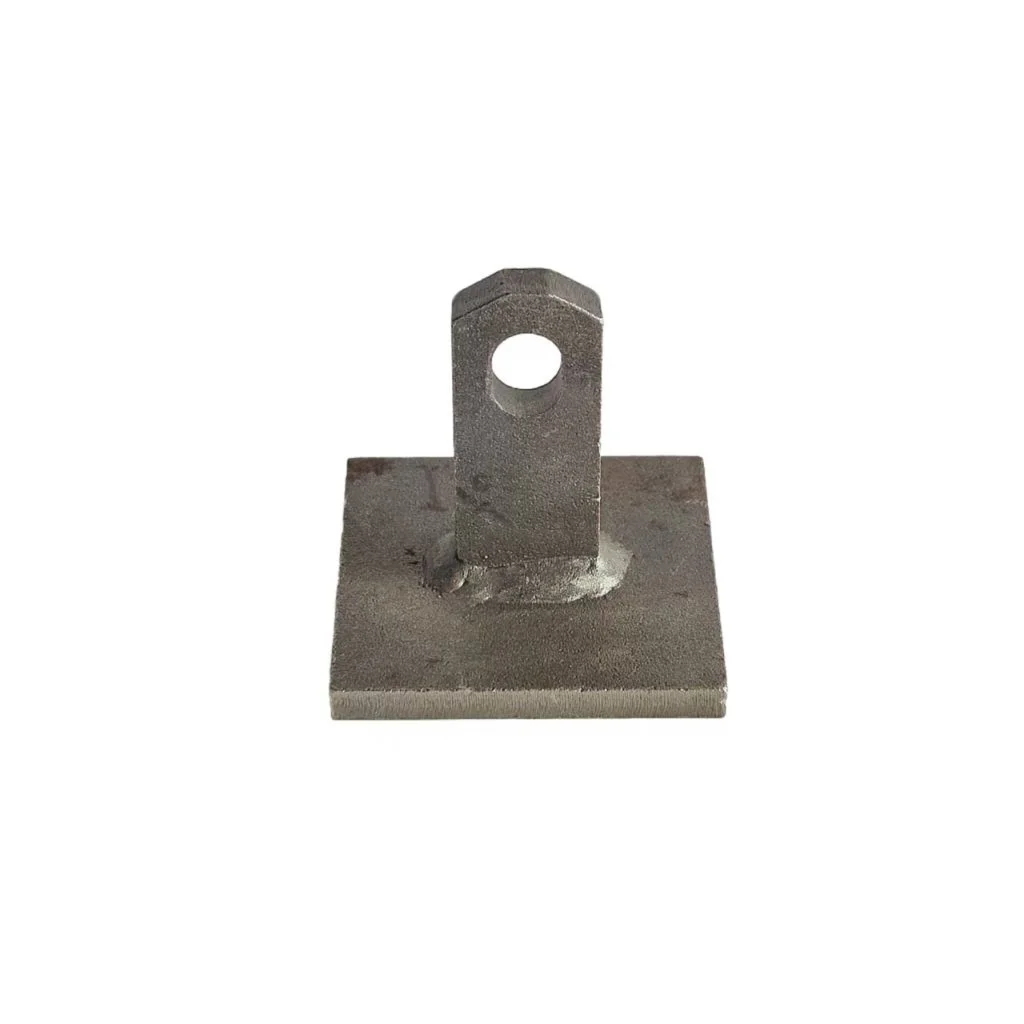

Are You Getting the Best Out of Concrete Anchor Plates?
Do you ever wonder about the behind-the-scenes heroes holding our construction marvels together? While the concrete itself provides us with the weight and compression capacity, it’s often the seemingly ordinary anchor plate that supplies the critical connections and load transfers required for true structural integrity. But are we actually tapping the full potential of these humble materials?
Are there perhaps subtleties and hidden tricks to their performance, elevating them from good enough to exceptional? Let’s delve into five commonly overlooked aspects of employing concrete anchor plates for ideal structural integrity.
Beyond the Bolt: Are You Considering the Importance of Proper Embedment Depth?
How Does Embedment Depth Affect Structural Integrity?
We like to focus on the strength and size of the bolt and anchor plate, but are we properly looking at the quiet partner in this critical connection—the embedment depth and concrete surrounding it? The performance of an anchor plate does not solely depend on the steel; it greatly relies on the strength and volume of the concrete resisting pull-out forces.
What Happens When Embedment is Insufficient?
Are you placing a proper cover of concrete over and around the anchor plate? A lack of proper cover can result in early cracking of the concrete and a substantial loss of anchor holding capacity. Also, is the concrete adequately consolidated around the plate at pour time? Air pockets or voids will form weak spots and will weaken steel-to-concrete bond.
Do consider using vibrators judiciously such that there is thick, even encasement concrete. Looking ahead from the plate to the bolt, and to the importance of proper embedment depth and concrete consolidation as well, is an easy but lesser-known trick to successful structural integrity.
Surface Matters: Might You Be Underestimating the Advantage of an Prepared Plate Surface?
Why Surface Preparation is Important
While it may seem a triviality of no great importance, have you considered the effect of the condition of the surface of the anchor plate on its bond to the surrounding concrete? A mill-finish plate may seem adequate, but would a roughed or prepared surface offer more adhesion and load transfer?
What Techniques Improve Plate Bonding?
Think about friction and mechanical interlock mechanisms. A moderate surface roughness can encourage a better grip with the concrete matrix at curing, leading to more pull-out resistance and slip. Might a simple procedure like sandblasting or the inclusion of welded studs or shear keys greatly improve the bond?
These comparatively small modifications can greatly increase the effective contact area and mechanical interlock between the anchor plate and the concrete, resulting in a more secure and stronger connection.
More Than Static Loads: Are You Accounting for Dynamic Forces and Fatigue?
How Do Dynamic Forces Impact Anchor Plates?
In the majority of structural applications, anchor plates are subjected not only to static, permanent loads, but also to dynamic, alternating forces from wind, earthquakes, or operating vibrations. Are you considering the potential for fatigue failure in your anchor plate connections under these cyclic loads?
Can Design Changes Reduce Fatigue Risk?
Can the anchor plate design itself reduce fatigue? Sharp corners or abrupt changes in cross-section can cause stress concentrations, which are the most probable locations where the fatigue cracks would initiate and grow.
Are you designing anchor plates with radiused edges and smooth transition to minimize stress concentrations and enable a more uniform distribution of stress? And are you selecting steel grades with appropriate fatigue strength for expected loading conditions? To grasp and control the potential for fatigue and dynamic forces is a vital, sometimes high-tech, trick for ensuring long-term structural stability.
The Devil in the Details: Are You Carefully Verifying Bolt Torque and Plate Washer Use?
How Important is Proper Bolt Installation?
Even with the strongest anchor plate and finest-laid concrete, the final connection is greatly reliant on correct installation of the connecting bolts. Are you torquing bolts to the manufacturer’s specifications? Under-torquing can lead to slippage and reduced clamping force, but over-torquing can strip the bolt or the surrounding concrete.
Are You Using the Right Plate Washers?
Also, are you always using properly sized and specified plate washers under the bolt head and nut? Washers spread the clamping force across a larger area, preventing the anchor plate from being damaged and giving a better distribution of even pressure.
Could neglecting to pay attention to these seemingly minute details compromise the whole connection? Careful torque control of bolts and correct use of plate washers are little-known, but essential, secrets to achieving the desired structural performance of your anchor plate connections.
Beyond Standard Shapes: Could Special Anchor Plate Design Offer Optimized Performance?
Why Limit Yourself to Standard Plate Shapes?
While typical square or rectangular anchor plates are normal, are you constantly considering whether or not a custom-designed plate could offer improved performance for specific loading conditions or geometric constraints?
What Are the Benefits of Custom Designs?
Examining the potential of custom anchor plate designs that adapt to the unique requirements of your project can free maximum performance and yield a more efficient and durable structural bond.
Exploring the possibilities of custom anchor plate designs tailored to the specific demands of your project can unlock optimized performance and ensure a more efficient and robust structural connection.
BaoQi specializes in bespoke precast solutions4 . This capability suggests a flexibility in manufacturing and a potential to produce custom-designed anchor plates to meet specific project requirements.
By engaging with a supplier like BaoQi, you gain access to the expertise and manufacturing capabilities needed to explore custom anchor plate options that can truly enhance the structural integrity of your projects.
The Hidden Pillar of Strength
Concrete anchor plates, quietly located deep within the fabric of our buildings, are critical to stability and load transfer.
By seeing beyond the surface and taking these five commonly overlooked “tricks” into consideration—adequate embedment depth, prepared plate surfaces, dynamic force considerations, careful bolt installation, and investigating custom designs—we can derive the full benefit of these critical components and attain genuinely flawless structural integrity in our building projects.
